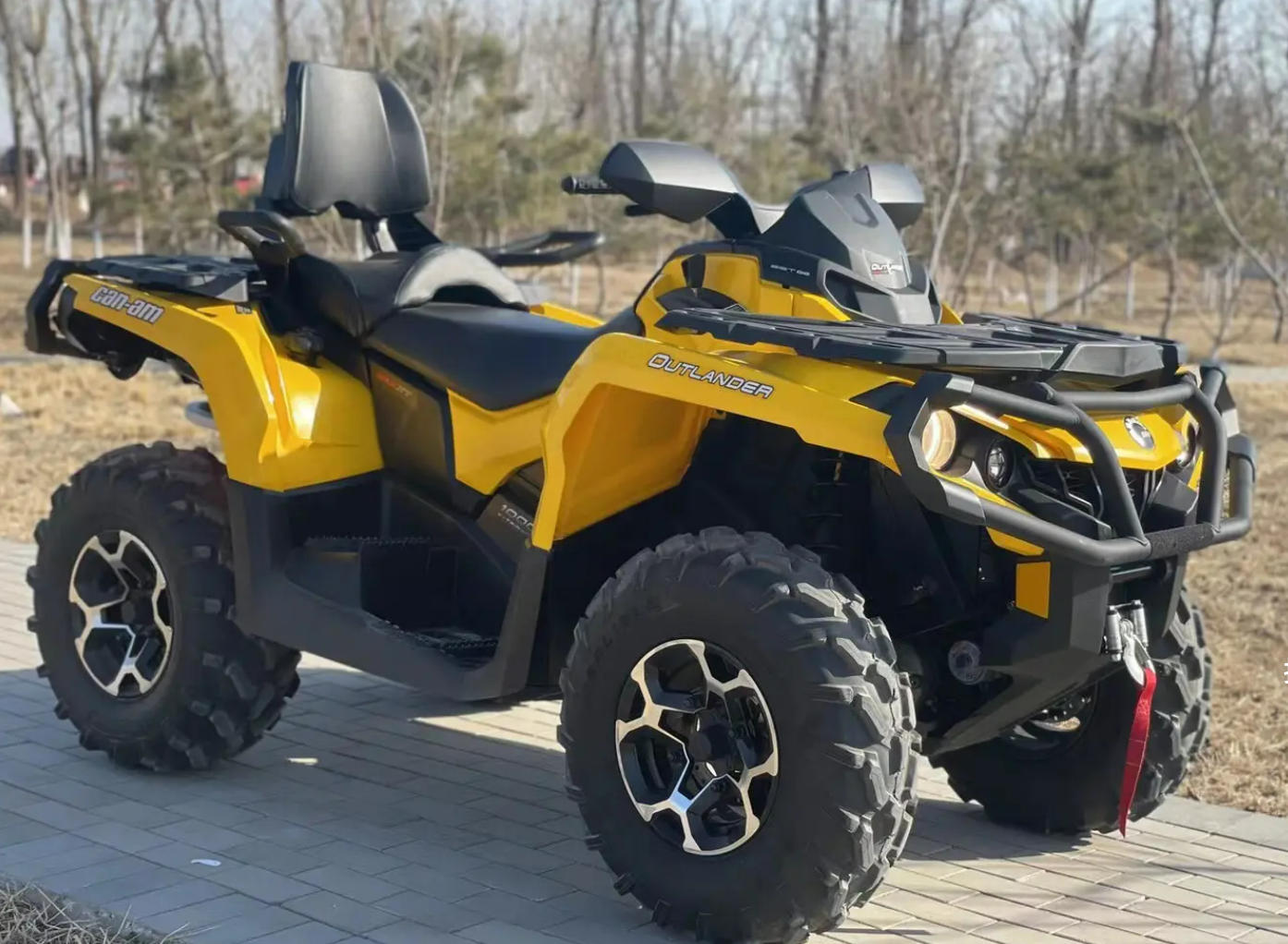

China ATV1000cc02

Model: China ATV1000cco02

Product Description:

(1) Type: 976cc, V-twin, liquid-cooled, SOHC, 8-valve (4-valve/cyl)

(2) Bore & Stroke: 91 x 75 mm

(3) EFI System / Carburetor: 46 mm Throttle Body, 2 Siemens? VDO injectors

(4) Starting System: Electric

(6) Transmission: CVT, sub-transmission with high, low, park, neutral & reverse. Standard engine braking

(7) Drive Train: Selectable 2w/4w shaft driven with Visco-Lok† front differential

(8) Frame: SST G2

(9) Front Suspension Type/Shocks: Double A-arm

(10) Front Suspension Travel: 9 in (229 mm)

(11) Rear Suspension Type/Shocks: Torsional Trailing arm Independent (TTI)

(12) Rear Suspension Travel: 9.3 in (236 mm)

(13) Front Brakes: Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers

(14) Rear Brake: Single 214 mm ventilated disc brake with hydraulic twin-piston caliper

(15) Tires/Front: 26 x 8 x 12 in 660 x 203 x 305 mm

(17) Tires/Rear: 26 x 10 x 12 in 660 x 254 x 305 mm

(18) Wheels: Cast-aluminum

(19) L x W x H (in): 86 x 46 x 44 in

(20) L x W x H (mm): 2,184 x 1,168 x 1,118 mm

(21) Wheelbase: 51 in (1,295 mm)

(22) Seat Height: 34.5 in (877 mm)

(23) Ground Clearance: 12 in (305 mm)

(24) Dry Weight: 747 lb (339 kg)

(25) Towing Capacity: 1,300 lb (590 kg)

(26) Rack Capacity: Front: 100 lb (45 kg) Rear: 200 lb (90 kg): Storage: Rear storage 5.7 US gal (21.4L)

(27) Fuel Capacity: 5.4 US gal (20.5L)

(28) Instrumentation: Multi-function digital LCD gauge: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip & hour meters, diagnostic center,gear position, engine hour meter, 4x4 indicator, temperature and engine lights, fuel gauge, clock, auto shut off after 15 minutes

(29) Anti-Theft: D.E.S.S.™ (Digitally Encoded Security System)

(30) Electrical: Prewired for winch

(31) Lighting: 230-watt from twin 60-watt reflectors and dual 55-watt projectors with tail light/brake light

(32) DC Outlet: Lighter type in console, standard connector in the back (15A)
