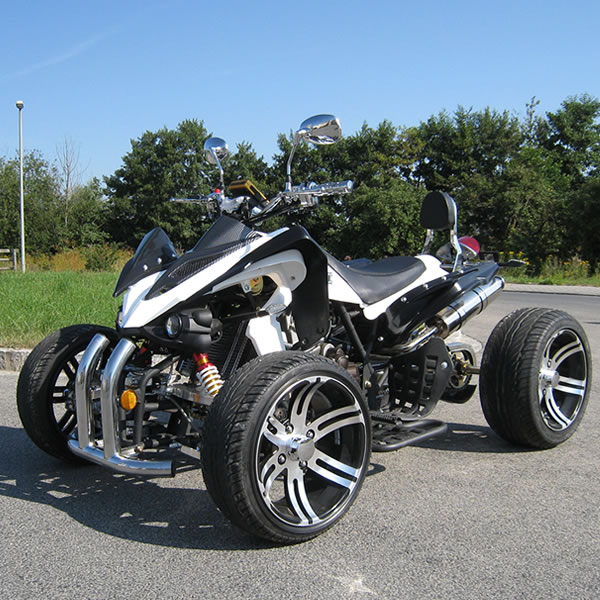

China ATV250CC13

Model:

China ATV250CC13

Approve mode:EEC  EPA  DOT

Product description:

(1) Top speed: 130km/h(78MPH)

(2) 250/300/350cc manual water-cooled

(3) New long seat rear for 2 person

(4) Gross weight: 285kg

(5) Dimension (L*W*H): 198x115x94(cm)

(6) Ignition: CDI

(7) Seat height: 70cm

(8) Wheelbase: 140cm

(9) Ground clearance: 11cm

(10) Length of rear fork: 65cm

(11) Front Tire: 185/30-14

(12) Rear Tire: 270/30-14

(13) Braking Method: Front disc brake

(14) Rear disc brake

(15) Drive Train: Chain Drive

(16) Engine: 350cc 1cylinder,4stroke,water-cooled, camshaft upwards, with balance shaft.

(17) 6-speed gearshift and reverse gear

(18) Max.Power(kw/r/min) 22.0/7500

(19) Max.Torque (N.m/r/min) 28.0/6000

(20) Bore and Stroke(mm×mm) 83.0×64.5

(21) Front swingarm top quality steel board incise

(22) Meter: Luxury LED or digital

(23) Muffler: double-stainless steel'

(24) Suspension: hydraulic air-cell damp ,

(25) Start Mode: Electric Start

(26) Battery: 12V 14Ah

(27) G.W/N.W: 285kgs/255kgs

(28) Packing Size(L*W*H): 1780mm*1110mm*710mm

(29) Container Loading Capacity: 20/40/40HQ 18/39/40PCS
